Ultimate ESPHome DIY Smart Sensor

Written by: Fixt

If you're subscribed to our Channel
Login with your Google account to get our Smart Tutorial Experience!

TABLE OF CONTENTS
PrerequisitesfixtSE DIY Sensor CaseRemixesClip for TopMMwave Multi Sensor fixtSE LD2450How to wire it upESPHome FirmwareYAML Files

Featured

Using DeepSeek R1 to Control Home AssistantUsing DeepSeek R1 to Control Home Assistant
Get Spotcast working again | Spotify Home Assistant IntegrationGet Spotcast working again | Spotify Home Assistant Integration

Related

Tags

Home-Assistant
ESPHome
Dashboard
Tutorial
Presence-Detection
Sensor

If you like my work, please consider supporting me on Ko-fi! β˜•πŸŽ‰

← Back to the blog

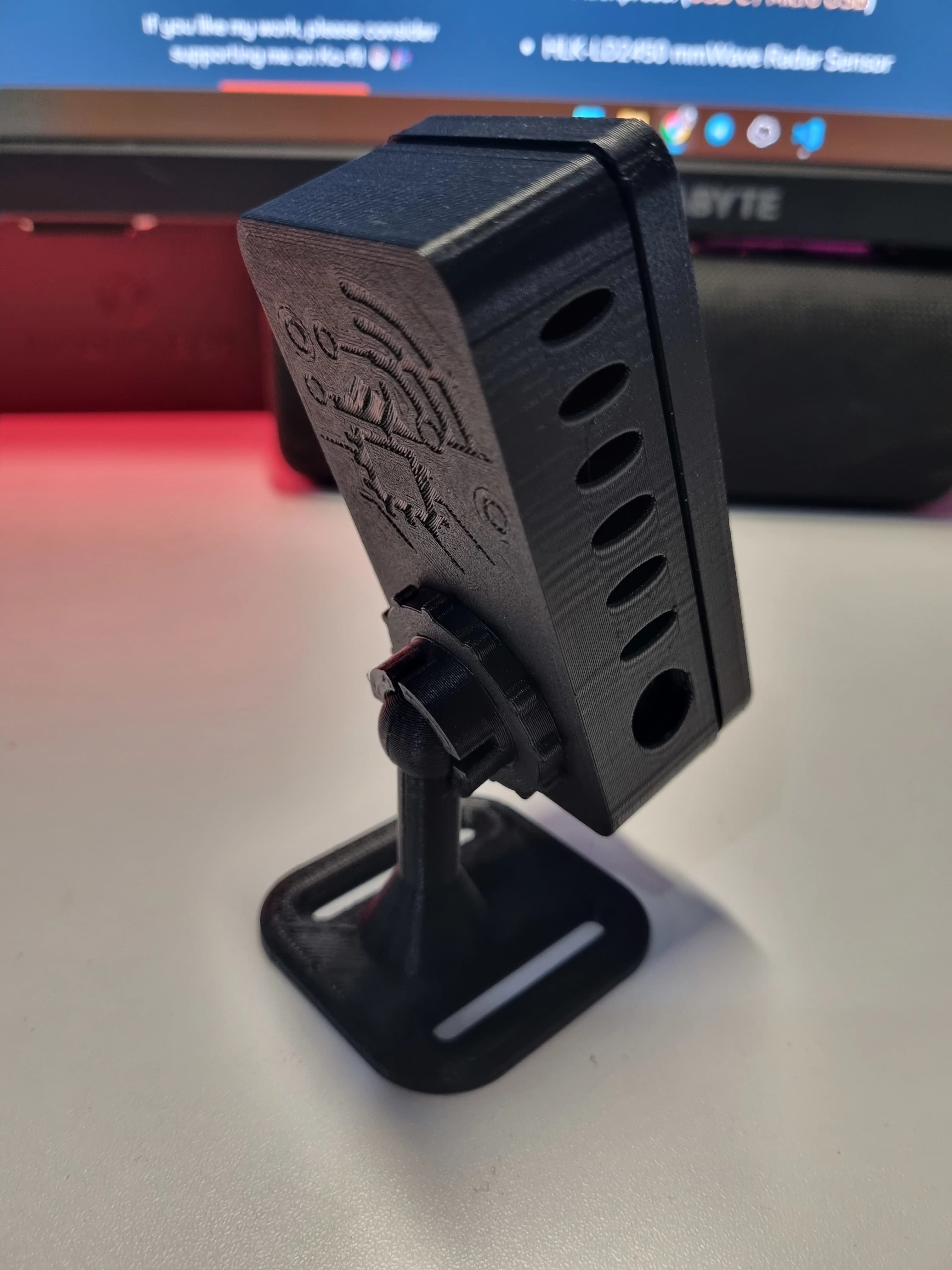

mmWave Sensor

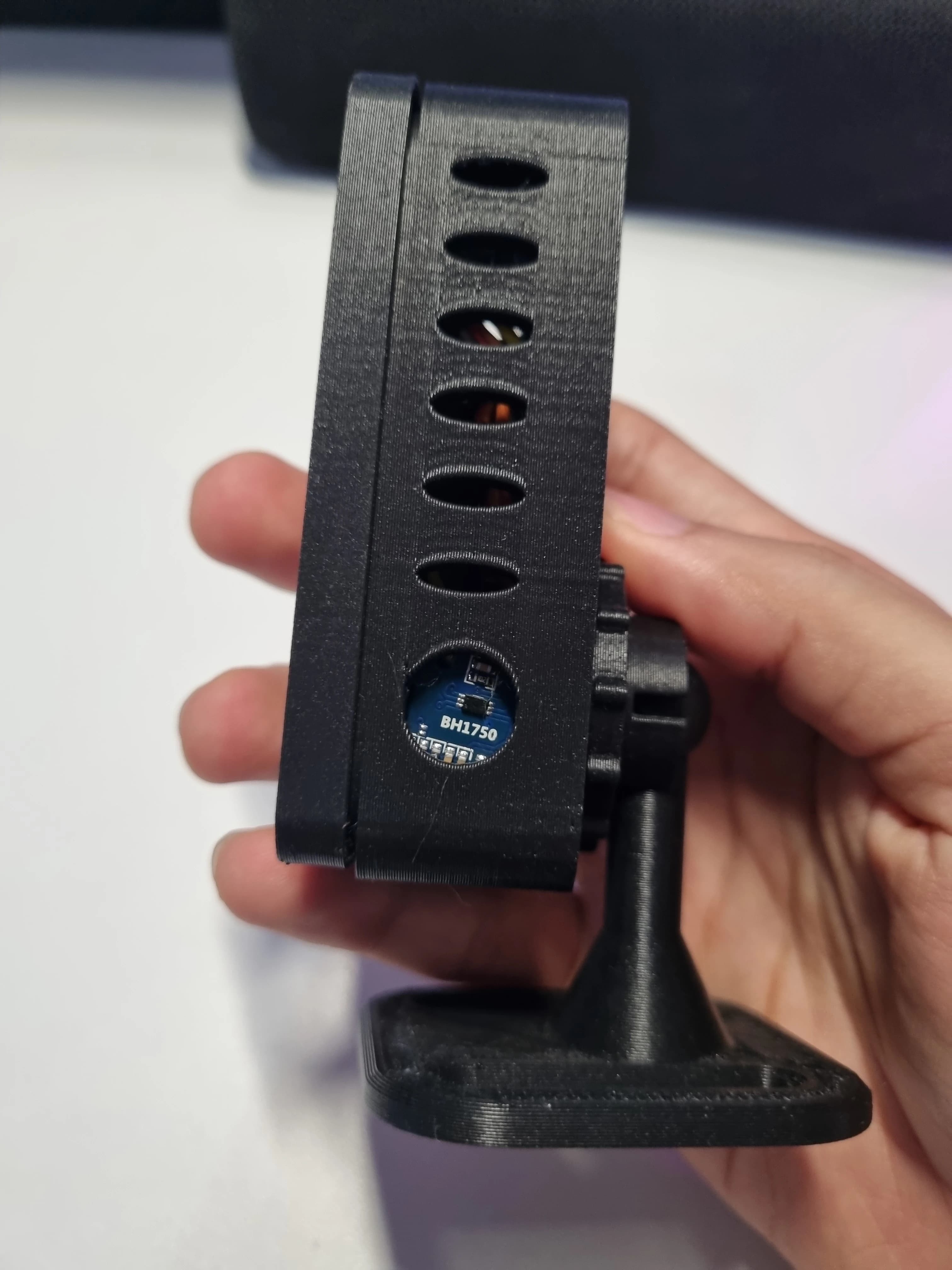

Side a

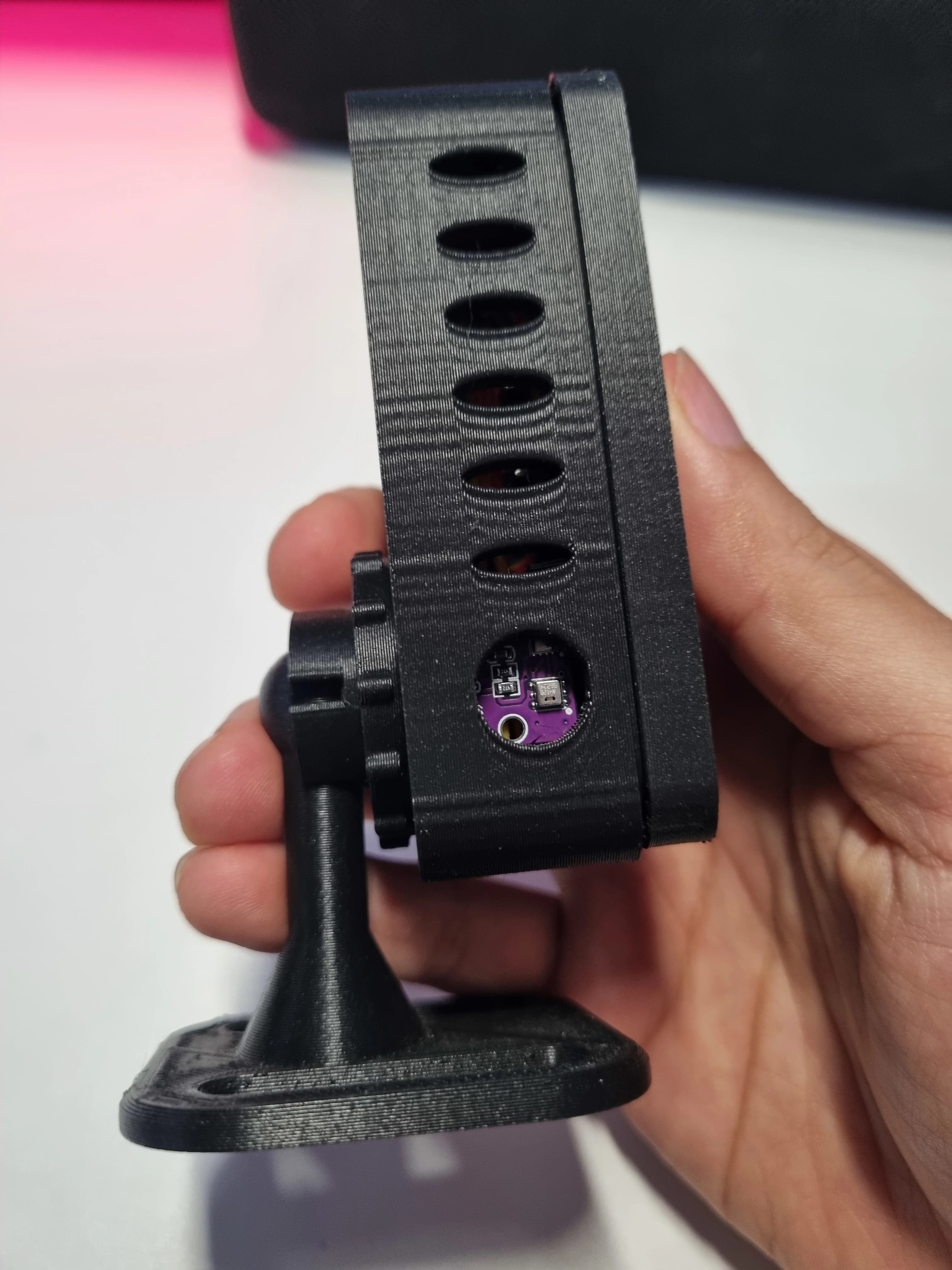

Side b

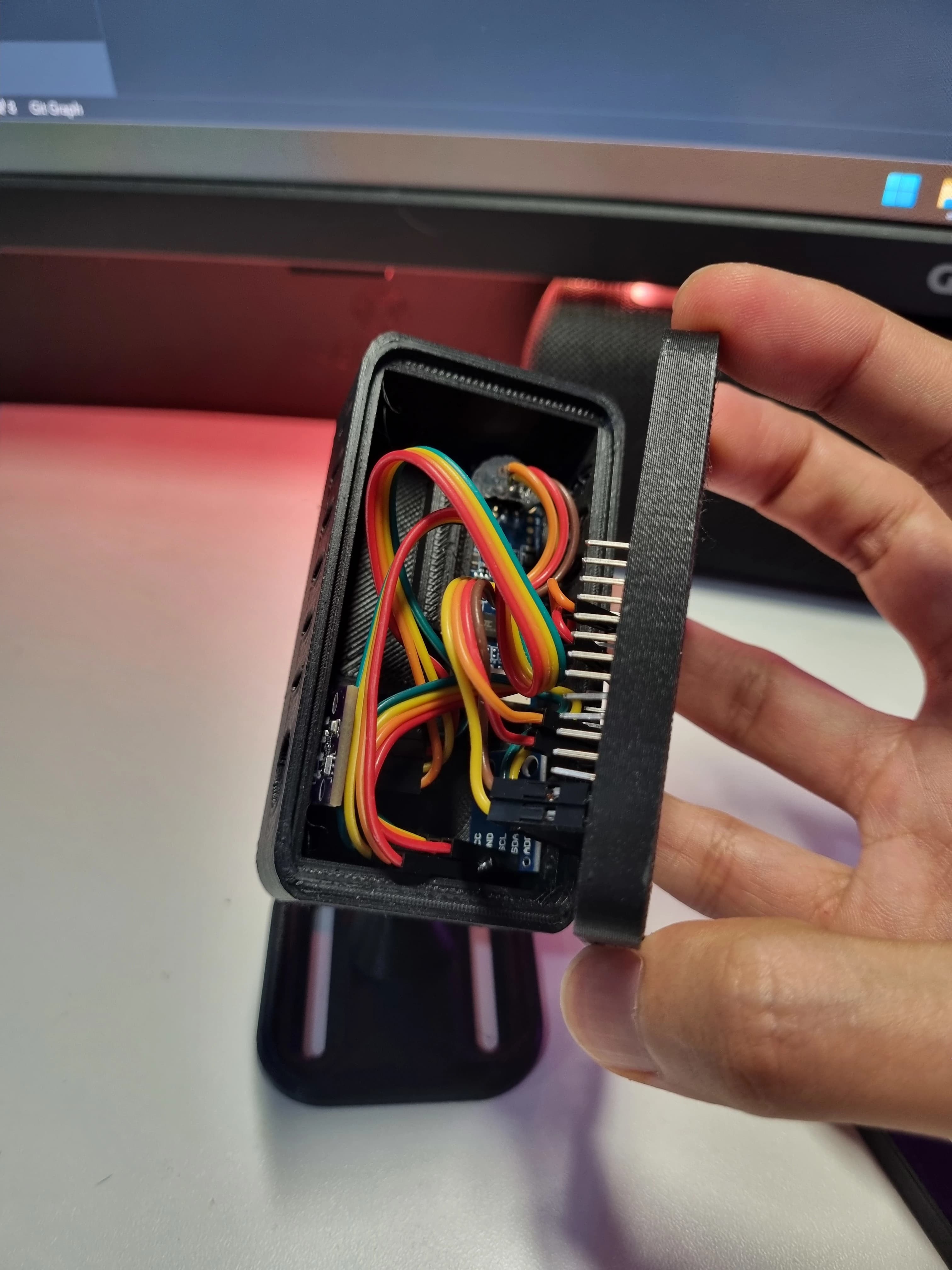

Inside
ESP32

HLK-LD2450 Presence Sensor

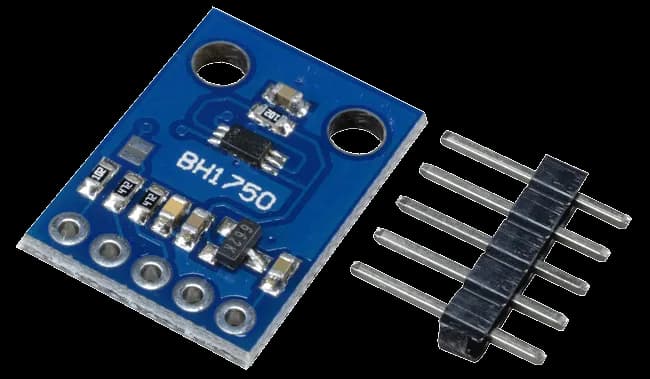

BH1750 Light Sensor

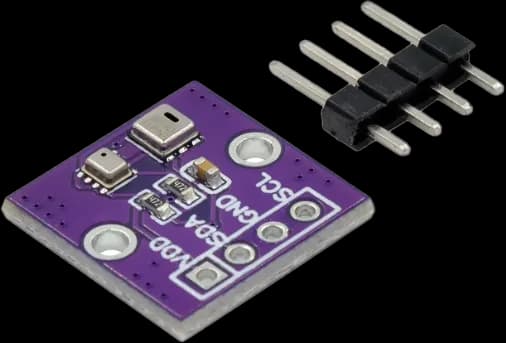

AHT20 BMP280 Temperature Humidity and Pressure Sensor

Prerequisites
#

Using the affiliate links below helps support the channel and all the content I create πŸŽ‰πŸ™Œ
BH1750 Sensor
  • BH1750 Light Sensor
    • Amazon: (3 pack)(6 pack)
    • Aliexpress: (BH1750)
AHT20_BMP28 Sensor
  • AHT20 BMP280 Temperature Humidity and Pressure Sensor
    • Amazon: (6 pack) (2 pack)
    • Aliexpress: (AHT20 BMP280)

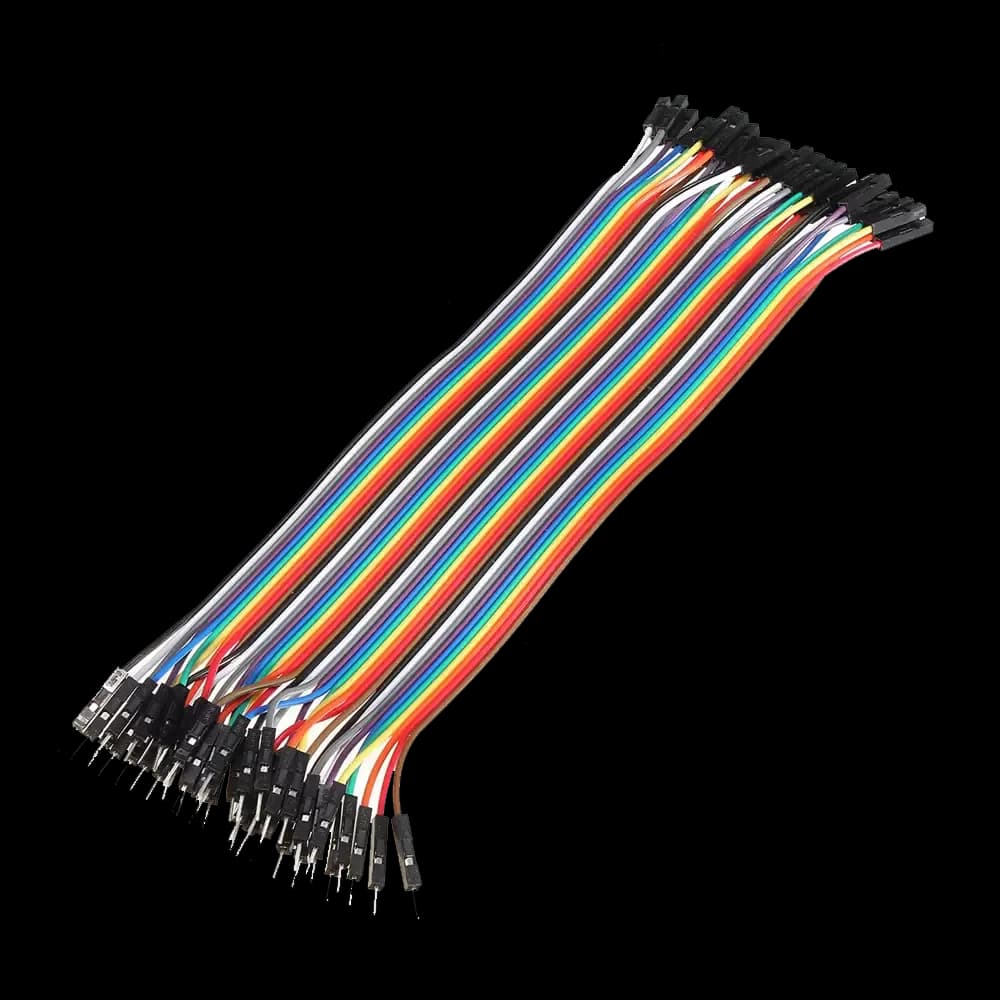

Dupont cable
  • Dupont Cable
    • Amazon: (Dupont Cable 120 PCS Assorted)
    • Aliexpress: (Dupont Cable Male to Male and Male to Female)

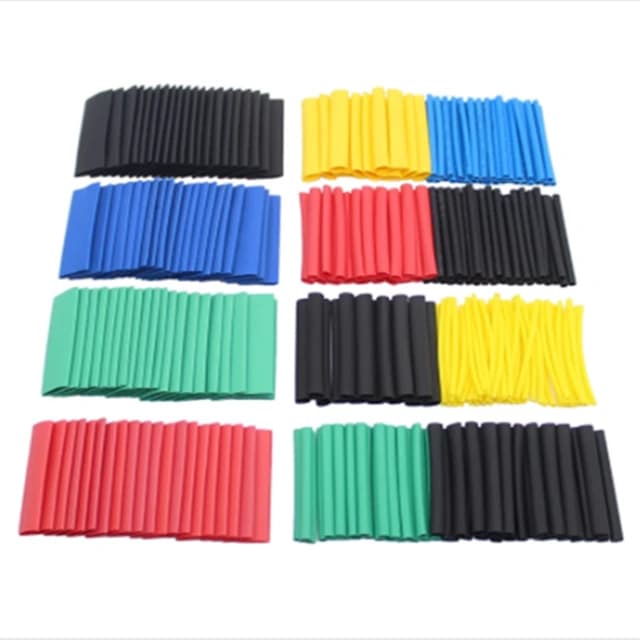

Termoretractil Heat shrink tube
  • Termoretractil Heat shrink tube
    • Amazon: (Heat Shrink Tube)
    • Aliexpress: (Heat Shrink Tube)

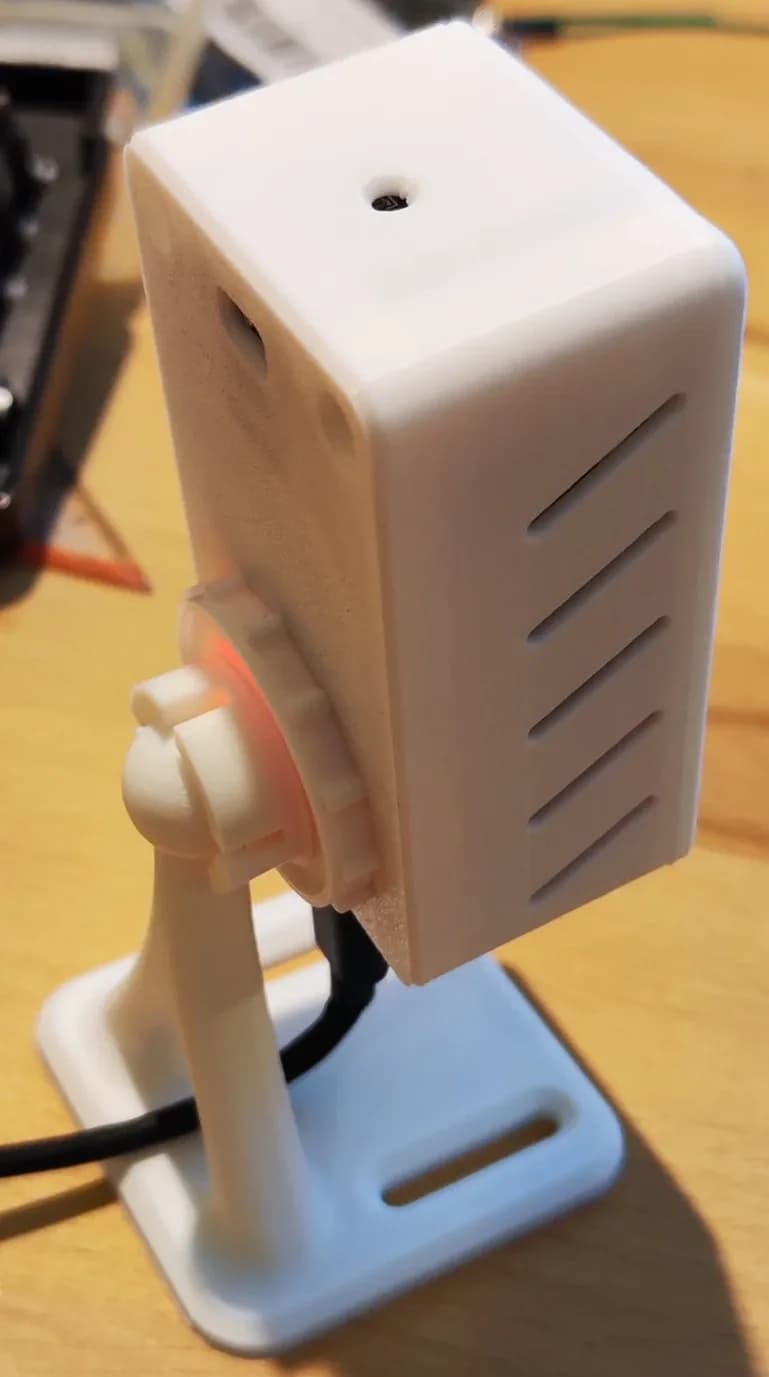

fixtSE DIY Sensor Case
#

You can get it on:

Or order it from:

Save $5 on your first order using our link: https://pcbway.com/g/lHR6if

Remixes
#

Clip for Top
#

Clip

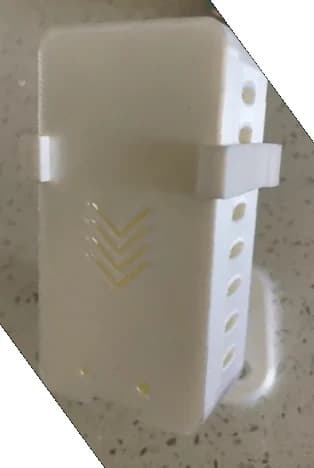

checkleylane made a clip to held the top of the original case
You can get it on:

MMwave Multi Sensor fixtSE LD2450
#

Reimagined Case
F-Square made a new case for this project, with a lots of improvements:
  • Rearranged the sensors inside the case (now the case can look up, instead of down).
  • Added M3 Screws, so the body can be held in place easily.
You can get it on:

How to wire it up
#

Wire Up

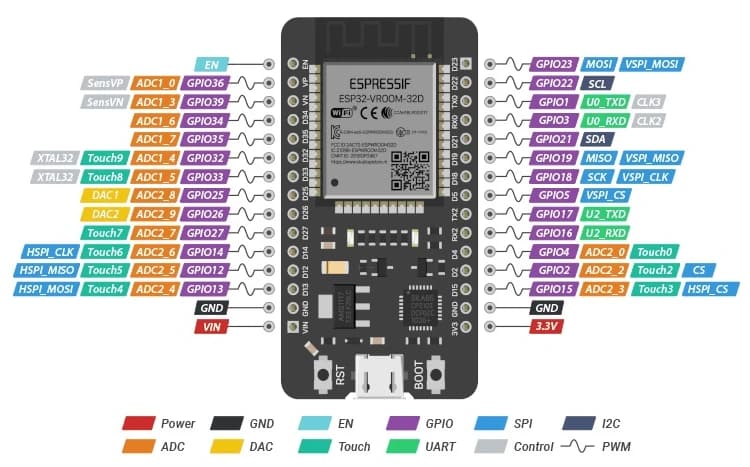

ESP32 BoardBH1750AHT20 BMP280
3v3VCCVDD
GNDGNDGND
D22SCLSCL
D21SDASDA

ESPHome Firmware
#

Updated firmware to ESPHome 2024.12.4
Added OTA support
FirmwareSensor Name
With Bluetooth Proxyuesp-sensor
Without Bluetooth Proxyuesp-sensor-no

YAML Files
#

v1.2.0:
Added OTA support (deactivated by default)
Changed bmp280 to bmp280_i2c

Tags

Home-Assistant
ESPHome
Dashboard
Tutorial
Presence-Detection
Sensor
← Back to the blog

Featured

Using DeepSeek R1 to Control Home AssistantUsing DeepSeek R1 to Control Home Assistant
Get Spotcast working again | Spotify Home Assistant IntegrationGet Spotcast working again | Spotify Home Assistant Integration

Related

Tags

Home-Assistant
ESPHome
Dashboard
Tutorial
Presence-Detection
Sensor
YouTube Subscriber Access
FIRMWARE

YouTube Subscriber Benefit

This firmware is free for all our YouTube subscribers!

Log in with your Google account to access it on our website.

Subscribe to our channel
Shop Content
YAML

Now available exclusively in our store.
Get instant access by purchasing using the button above.
